Bedrock Intelligibility Measurement Kit

This kit contains all you need for speech intelligibility measurements using the STIPA method according to most national and international standards, including the following:

• IEC-60268-16
• ISO-7240-19
• NFPA72 Annex D
• NEN2575
• DIN-60849/DIN-VDE-0833-4
• BS-5839-8

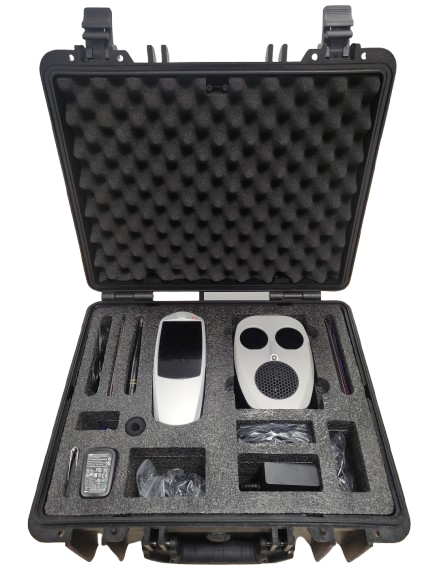

The kit consists of a Bedrock meter (AM100, SM90, SM50) and a Bedrock TalkBox (BTB115,  BTB65), combined in a rugged waterproof carrying case.

The functionality extends far beyond just STIPA measurements, and covers all of the most commonly required acoustic test methods:

• STIPA measuring (quick screening mode, pro mode).
• Full STI using the direct method (65 second measurement).
• Speech Level Measurements cf IEC-60268 Annex J.
• AM100/SM90:  Class 1 / Type 1 sound level meter (fast, slow, impulse; A/C.Z-weighting, Leq, SEL) conforming to IEC-61672 class 1, ANSI S1.4 Type 1.
• SM50: Class 2 / Type 2 sound level meter (fast, slow, A/C.Z-weighting, Leq) conforming to IEC-61672 class 1, ANSI S1.4 Type 1.
• Real Time Analyzer (1/12, 1/6, 1/3 and 1/1 octave).
• FFT analyzer (detailed frequency analysis up to 32768 lines).
• RT60 measuring (reverberation times: T20/T30/EDT).
• Noise Curves (NR, NC, PNC, NCB, RC, RC mark II).
• THD+N.
• Fundamental frequency estimation.
• Building acoustics: D, R', DnT, Dn.
• Building acoustics: SRI/STC.
• AM100: OSHA/TWA/ISO noise exposure
• Calibrated audio recording.
• LAeq long-term logging and monitoring (LEQ, RTA).
• Audio oscilloscope.
• AC Volt meter for audio line level measurements (dBU, dBV, V rms).
• USB audio device mode - calibrated audio for your PC-based software applications.
• More functionality will be added through free future firmware upgrades.

The Bedrock Intelligibility Measurement Kit can be bought through any of our distributors. Feel free to contact us directly if no distributor is listed for your region. The measurement kit is shipped worldwide with our global 24-month pick-up and return warranty.
