Bedrock SBxx advanced USB controlled acoustic analyzer

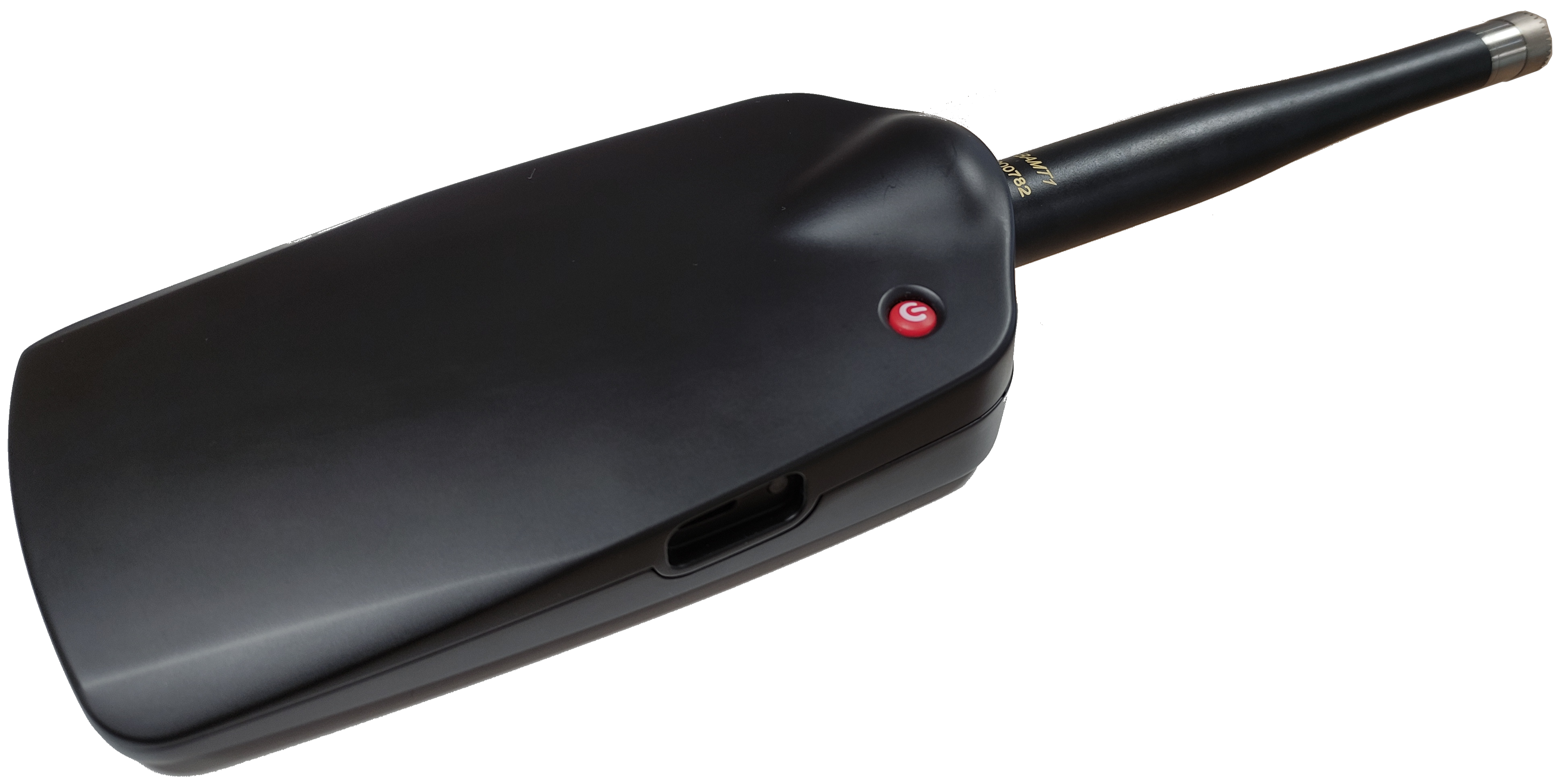

The Bedrock SB41 (class 1) and SB42 (class 2) are full-featured acoustic measuring instruments that serve as a front-end within a variety of computer-controlled measuring setups. With a minimalistic, no-screen, no-battery design, the SBxx is ideal for automated, unsupervised measurements via our Remote Control API. Alternatively, a remote display can be streamed over USB to your host device as well. This gives you the power and reliability of a class 1 or class 2 instrument, combined with full integration flexibility for your own software.

Functionality

• STIPA measuring (quick screening mode, pro mode, averaging mode)
• Full STI using the direct method (65 second measurement).
• Speech Level Measurements cf IEC-60268 Annex J.
• SB41: Class 1 / Type 1 sound level meter (fast, slow, impulse; A/C.Z-weighting, Leq, SEL) conforming to IEC-61672 class 1, ANSI S1.4 Type 1.

• SB42: Class 2 / Type 2 sound level meter (fast, slow, impulse; A/C.Z-weighting, Leq, SEL) conforming to IEC-61672 class 2, ANSI S1.4 Type 2.
• Statistical acoustics (L10, L90, etc)
• Real Time Analyzer (1/12, 1/6, 1/3 and 1/1 octave)
• FFT analyzer (detailed frequency analysis up to 32768 lines)
• RT60 measuring (reverberation times: T20/T30/EDT).
• Noise Curves (NR, NC, PNC, NCB, RC, RC mark II)
• THD+N
• Fundamental frequency estimation
• Building acoustics: D, R', DnT, Dn
• Building acoustics: SRI/STC.
• Audio oscilloscope
• Long term logging and monitoring (LEQ, RTA)
• AC Volt meter for audio line level measurements (dBU, dBV, V rms)
• Calibrated audio recording
• USB audio device mode - calibrated audio for your PC-based software applications
• More functionality will be added through free future firmware upgrades.

Specifications

• 20 - 20.000 Hz frequency range
• Dynamic range 30-130 dB (with included microphone; up to 145 with attenuator sold separately)
• 16 GB of storage (of which at least 95% available for user data)
• Access to stored data and recorded audio through high-speed USB-C interface
• SB41: Complies with IEC 60268-16 rev. 4, IEC 61672 Class 1, ANSI S1.4 Type 1, IEC-62160 class 0 (RTA), ISO-3382
• SB42: Complies with IEC 60268-16 rev. 4, IEC 61672 Class 2, ANSI S1.4 Type 2, IEC-62160 class 0 (RTA), ISO-3382

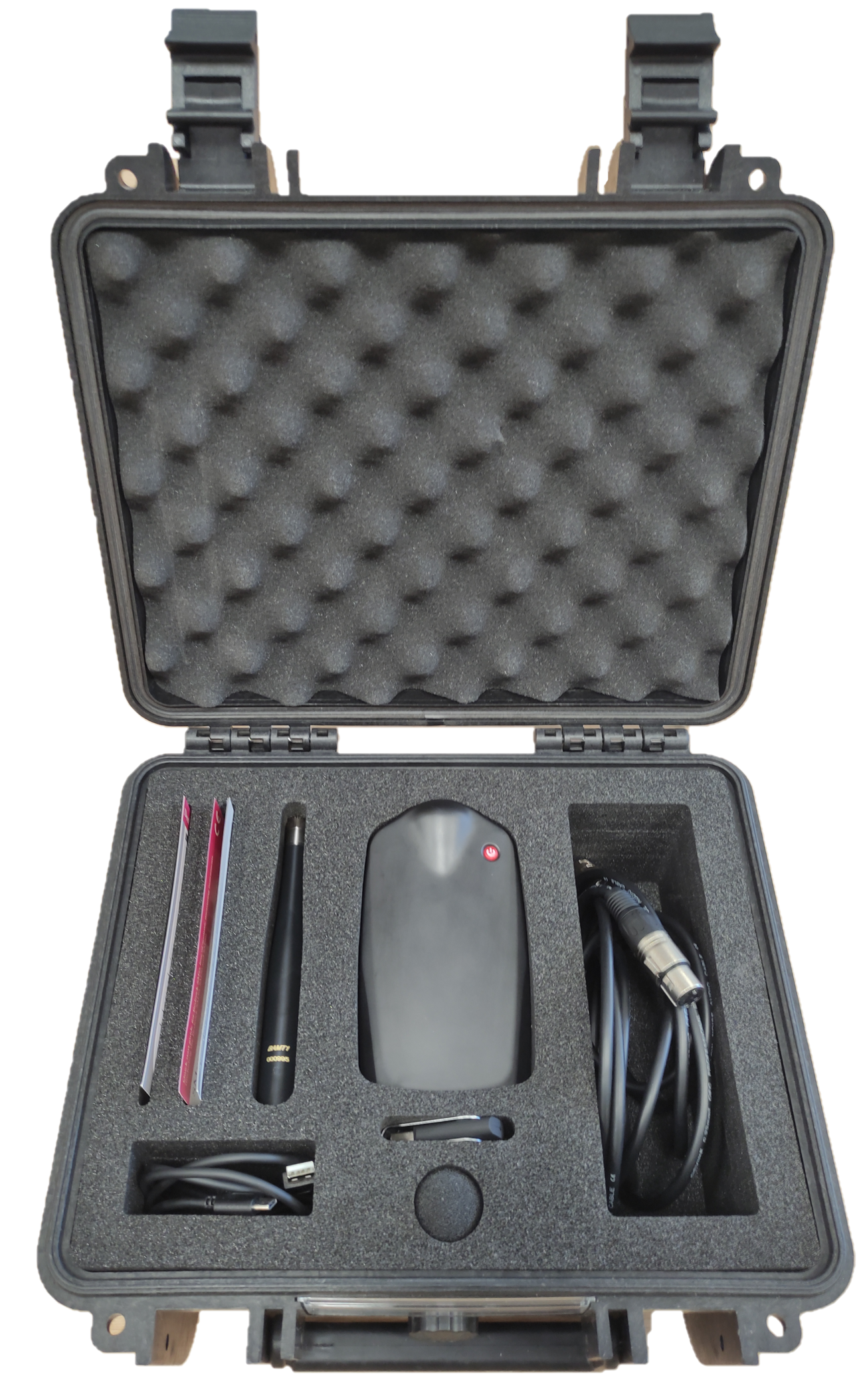

• All necessary accessories (such as microphone,  cables, windscreen, XLR entension cable, and a ruggedized waterproof carrying case) are included



The Bedrock SBxx is an all-round measuring solution, made especially for those who want to integrate high quality acoustic measuring into their own platform. Needing only the essential hardware components, the SBxx is our most competitively priced class 1 / class 2 instrument yet.

The Bedrock SBxx can be bought through any of our distributors. Feel free to contact us directly if no distributor is listed for your region. The SBxx is shipped worldwide with our global 24-month pick-up and return warranty.
